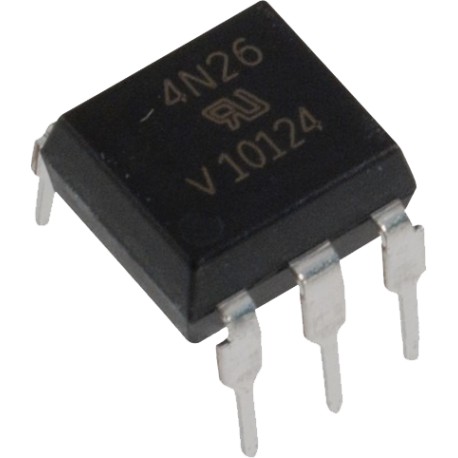

6PIN- Ac input Type Photocoupler,4N26M اپتو کوپلر
Product Category: Transistor Output Optocouplers
Manufacturer: Lite-On
RoHS: RoHS Compliant Details
Package/Case: PDIP-6
Output Type: NPN Phototransistor
Number of Channels: 1 Channel
If – Forward Current: 10 mA
Maximum Collector Emitter Voltage: 30 V
Maximum Collector Current: 100 mA
Isolation Voltage: 1500 Vrms
Maximum Collector Emitter Saturation Voltage: 0.5 V
Vf – Forward Voltage: 1.5 V
Vr – Reverse Voltage: 6 V
Pd – Power Dissipation: 250 mW
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: – 55 C
Packaging: Tube
Brand: Lite-On
Current Transfer Ratio: 20 %
Fall Time: 3 us
Height: 3.5 mm
Length: 7.3 mm
Mounting Style: Through Hole
Rise Time: 3 us
Factory Pack Quantity: 50
Width: 6.5 mm
اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
